Programmable DC-Power Supply EA-PS 11000-40 3U 15000W

특가 무료배송

프로그램마플 DC 파워 서플라이 0...1000V / 0...40A

0.0

0개 후기

~~20,960,000원~~ 할인

40%

12,576,000 원

최대 0원 적립

기본 0원 적립

텍스트리뷰 0원 적립

포토리뷰 0원 적립

제조사

EA Elektro-Automatik

원산지

독일

브랜드

EA Elektro-Automatik

모델

EA-PS 11000-40 3U

적립금

0원 적립

판매가능수량

1 개

배송정보

주문시 결제

총 금액 0원

구매 시 0원 적립예정

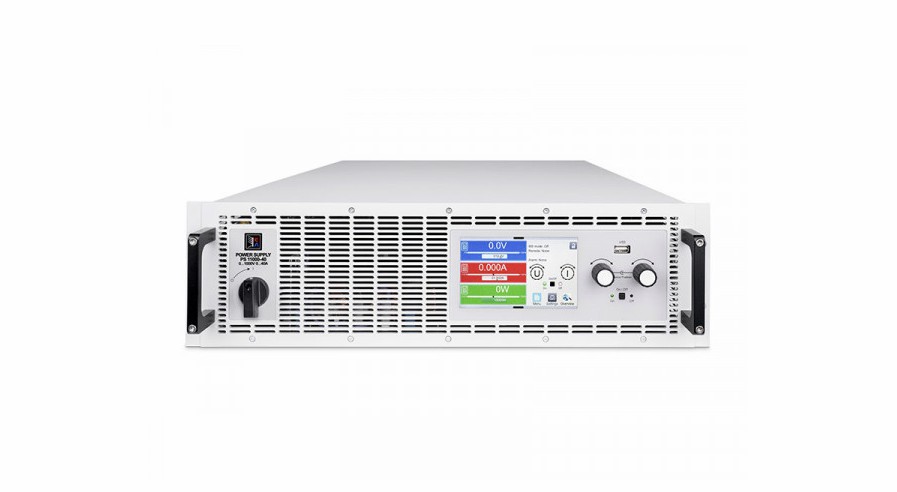

EA-PS 11000-40 3U 15000W

Article-Nr. 06230926

◎ TECHNICAL DETAILS

Product type:	DC laboratory Power Supply
Housing:	19" rack
Voltage (U):	1000.00
Current (I) Ampere:	40.00
Power (P) Watt:	15000.00
Resistance (R):	Yes
Characteristic Curve:	U/I/P autoranging
Human Inteface:	Touch panel & Menu
ext. control - analogue 0-5V/0-10V:	Yes
external control - GPIB (IEEE488):	No
external control - USB:	Yes
external control - RS232:	Yes
external control - CAN:	Yes
external control - LAN:	Yes
external control - Profibus:	Yes
external control - DeviceNet:	No
external control - Modbus TCP:	Yes
function generator:	No
special feature - High-Speed:	No
special feature - Sink:	No
special feature - water cooled:	No

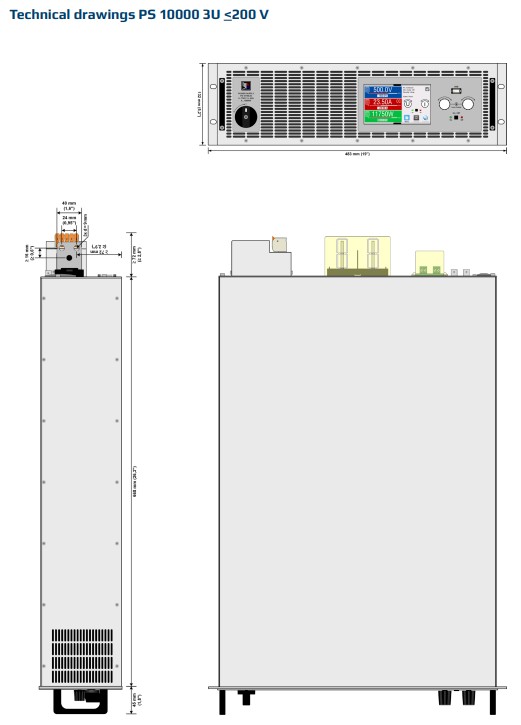

EA-PS 10000 3U 5kW - 10kW - 15kW

Programmable DC power supplies

FEATURES	Wide range input: 208V - 480V, ±10%, 3ph AC
	Active Power Factor Correction, typical 0.99
	Very high efficiency of up to 96%
	High performance with 15kw per unit
	Voltages from 0 - 60V up to 0 - 2000V
	Currents from 0 - 20A up to 0 - 510A
	Flexible, power regulated DC output stages (autoranging)
	Regulation modes CV, CC, CP, CR with fast crossover
	Digital regulation, high resolution with 16 bit ADCs and DACs, selection of voltage regulation speed
	Color 5" TFT display with touch control and intuitive user interface
	Galvanically isolated Share-Bus for parallel operation of all power classes in the 10000 series
	Master-slave bus for parallel operation of up to 64 units of all power classes of the 10000 series
	Command languages and drivers: SCPI and ModBus, LabVIEW, IVI

Built-in interfaces	USB, Ethernet, Analog, USB Host, Master-Slave bus, Share Bus
Optional interfaces	CAN, CANopen, RS232, Profibus, EtherCAT, Profinet-with one or two ports, Modbus-with one or two ports, Ethernet-with one or two ports
Software	EA-Power Control
Options	Models for 208 V_ACsupply
