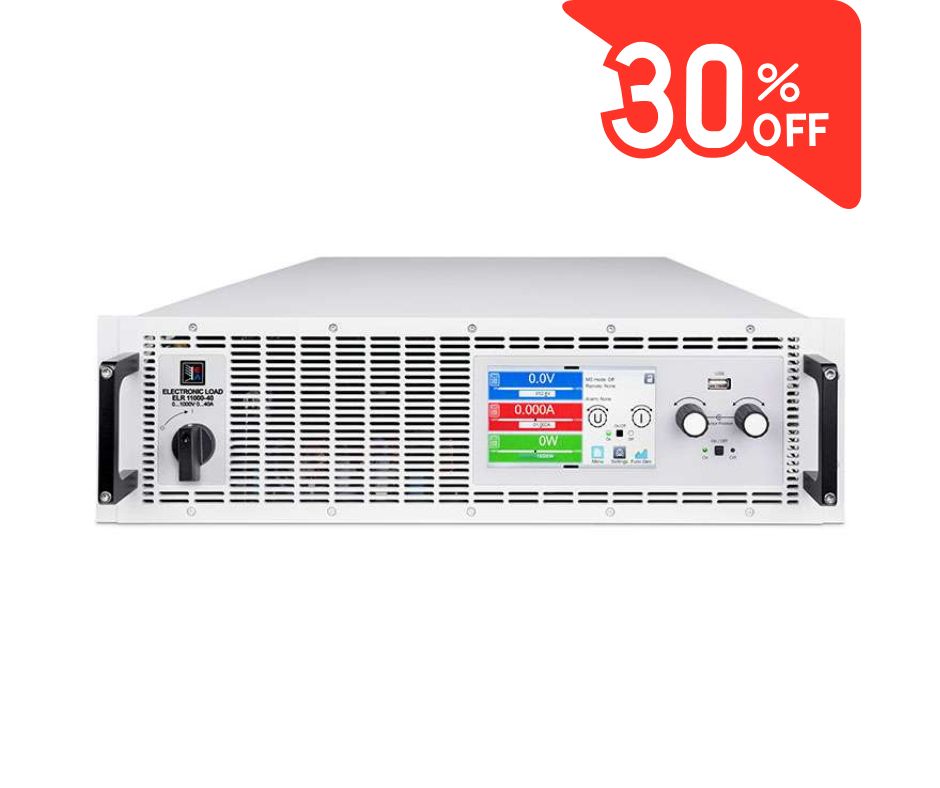

EA-ELR 10000 3U   5kW - 10kW - 15kW

 FEATURES

 Wide range input: 208V - 480V, ±10%, 3ph AC

 Active Power Factor Correction, typical 0.99

 Very high efficiency of up to 96%

 High performance with 15kw per unit

 Voltages from 0 - 80V up to 0 - 2000V

 Currents from 0 - 20A up to 0 - 510A

 Flexible, power regulated DC output stages (autoranging)

 Regulation modes CV, CC, CP, CR with fast crossover

 Digital regulation, high resolution with 16 bit ADCs and DACs, selection of voltage control speed: Normal, Fast, Slow

 Color 5" TFT display with touch control and intuitive user interface

 Galvanically isolated Share-Bus for parallel operation of all power classes in the 10000 series

 Master-slave bus for parallel operation of up to 64 units of same type in all power classes of the 10000 series

 Integrated function generator with predefined curves

 Regenerative with energy recovery into the grid

 Photovoltaics test mode (EN 50530)

 Command languages and drivers: SCPI and ModBus, LabVIEW, IVI

Built-in interfaces

 USB, Ethernet, Analog, Master-Slave bus, Share Bus

Optional interfaces

 CAN, CANopen, RS232, Profibus, EtherCAT, Profinet-with one or two ports, Modbus-with one or two ports, Ethernet-with one or two ports

Software

 EA-Power Control
